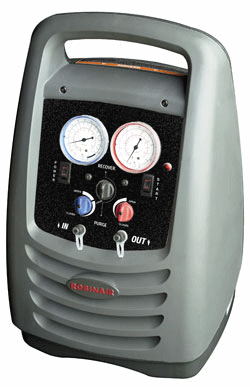

RobinAir High Pressure Portable Refrigerant Recovery System, 115 60 Hz (Recovery Only)
RobinAir High Pressure Portable Refrigerant Recovery System, 115 60 Hz (Recovery Only)

RobinAir High Pressure Portable Refrigerant Recovery System, 115 60 Hz (Recovery Only)

  • Hassle Free Returns - NO RMA's!
  • No Restocking Fees
  • Over 173,000 Satisfied Customers
  • 30 Day Money Back Guarantee*
    (*Restrictions Apply. See Return Policy)

We are Authorized Dealers of all Robinair Tools!
(Best Brands Software, LLC, the parent company, is the account holder.)

This Portable Performer Takes The Hassle

Out Of Refrigerant Recovery!

Features& Benefits:
  • New improved technology for maximum performance
  • Recovers all commonly used CFC, HFC and HCFC refrigerants
  • Proprietary Oil-Less Compressor handles both liquid and vapor straight through the compressor and is compatible with all refrigerant oils
  • Unit is enclosed in polyethylene blow molded case corrosion proof and resistant to rough handling
  • New semi-hermetic compressor design is ruggedly built and allows the technician to service the compressor no down time.
  • 3 row condenser provides more efficient flow and transfer of refrigerant in high ambient/temperature conditions
  • Unit includes a self-purge feature that allows the technician to purge all moisture, contaminants and excess refrigerants from the recovery machine without the need of a vacuum pump. This eliminates the potential for system cross contamination
  • 550-psi cut-off switch for tech safety
  • ARI 740 Certified
  • 1 Year Warranty
High Pressure Recovery Unit, 115 60 Hz

Unit Includes:

  • Automatic High Pressure cut-out switch for safety
  • Direct liquid recovery without damaging the compressor
  • All new proprietary Oil-less compressor and 1/2 hp motor
  • Field serviceable compressor
  • Multi-refrigerant capable with Self-Clearing feature, which prevents cross-contamination
  • One 60" hose included
  • In-line filter-dryer included
  • 1/4" MFL fittings
  • Optional Float Cable provides automatic shut off when tanks are 80% full
  • Power Source 115V 60 Hz

Technical Specifications

Compressor:

> 100:1 compression ratio, air cooled, machined aluminum alloy components, poppet style valves, hardened oxide coated cylinder walls with triple Teflon-ceramic polymer piston seals

Drive Train:

Direct Drive, HP cap start, inductive run, brushless AC motor

Motor Speed:

1725 RPM

Power Supply:

110-125 VAC 60Hz

Current Draw:

10A Max

Weight:

34lbs lbs.

Dimensions:

10.5 D X 20 H X 12.5 W

Inlet Fitting:

" MFL

Refrigerant Tank:

30 or 50 lb. refillable (not included)

Performance Specifications

Refrigerant Class

Category III

Category IV

Category V

Push/Pull Recovery Rate

Lbs./min.

Kg/min.

10.11

4.59

12.54

5.69

13.51

6.13

Liquid Recovery Rate

Lbs./min.

Kg/min

3.41

1.55

3.85

1.75

3.83

1.74

Vapor Recovery Rate

Lbs./min.

Kg/min

0.22

0.10

0.30

0.14

0.33

0.15

High Temp. Vapor Recovery Rate

Lbs./min.

Kg/min

n/a

n/a

0.33

0.15

n/a

n/a

Final Recovery Vacuum

kPa

33.6

33.6

33.6

Refrigerant Loss

Weight %

0.02

0.02

0.02

Residual Trapped Refrigerant

kg

<0.05

<0.05

<0.05

Per ARI 740

Approved for use with:

  • R-12
  • R-22
  • R-134A
  • R-401A
  • R-401B
  • R-401C
  • R-402A
  • R-402B
  • R-404A
  • R-406A
  • R-407A
  • R-407B
  • R407C
  • R-407D
  • R-408A
  • R-409A
  • R-410A
  • R-411A
  • R-411B
  • R-412A
  • R-500
  • R-502
  • R-507
  • R-509
