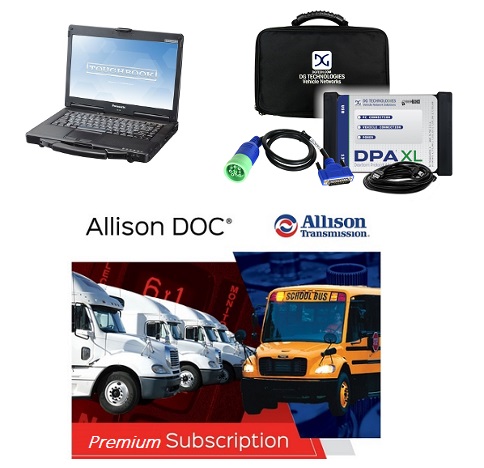

Allison DOC Premium 2017 Transmission Software, Panasonic Toughbook CF-53 Laptop & DPA-XL Connector Kit

• A Great Kit for Any Truck Shop that works on Allison truck transmissions!
• Easy to use, OEM heavy-duty diagnostic & troubleshooting application!
• Additional Free Diagnostic Software Included (see below)!

Features:

• 1 Year of OEM Allison DOC Premium 2017 software loaded & ready to go!
• Set up, Installed & Tested by Best Brands Software.
• The Allison DOC Software will be registered in your name with Allison.  The software purchase includes one year of free Allison DOC updates. $400 USD Annual Renewal Fee.
• Allison DOC® software combines Allison DOC® Premium, Allison DOC® Premium (H 40/50 EP™) and Allison DOC® Fleets. (A valid license is necessary to enable each product offering.)

• Allison DOC® Premium 2017 Subscription has these exciting new features:

  • Adds RP1210C enhancements
  • Ability to auto-try channels (5th Gen / Type-2 vehicle connections) for OEMs who have wired the TCM diagnostics to CAN 2 or CAN 3
  • Ability to find the correct CAN data bus for diagnostics
  • Eliminates the need for OEM specific cross-over cables
  • Ability to select channel for Data Bus Viewer
  • Allows reprogramming of DYNAMIC SHIFT SENSING: Custom Breakpoint Setting
  • Allows reprogramming of RETARDER: Use Accumulator
  • Allows reprogramming of SHIFT SELECTORS: Preselect Time Out with password from Allison TAC
  • Allows reprogramming of SHIFT SELECTORS: Preselect Time Out Duration and Range when SHIFT SELECTORS: Preselect Time Out is Enabled
  • Adds Troubleshooting Manual for Off-Highway CEC5 Product Allison 5th Generation Controls
• Allison DOC® Premium Coverage:
  • Monitors 3000/4000 Product Families Transmission Control Module (TCM) data
  • Monitors 1000/2000 Product Families Transmission Control Module (TCM) data
  • Monitors CEC2, CEC3 and CEC5 (Off-Highway) data
  • Monitors TC10 data
  • Monitors CEC (ATEC) Electronic Control Units (ECU) data using a proprietary protocol and the Noregon USB Translator 2.0 - All Allison Products device and Nexiq USB-Link™
  • Displays multiple transmission parameters
  • Displays a graphical instrument panel with analog and digital gauges
  • Displays a graphical strip chart
  • Records and plays back diagnostic sessions
  • Prints diagnostic reports
  • Reprograms selected TCM parameters (requires completion of Allison Transmission training)
• Allison DOC® Premium provides the following features:
  • Security measures to control reprogramming TCM/ECU parameters
  • Integrated Help with training videos
  • Diagnostic Trouble Code information with a direct link to Troubleshooting Manuals for CEC2/CEC3/CEC5, 1000/2000, 3000/4000 and TC10 Product Families.
  • A demo mode using prerecorded data
  • SmartConnect for detecting the PC-to-vehicle translation device and communication link
  • Communication troubleshooting wizard for those cases where the tool is unable to connect to a control module
  • Allison DOC® Premium is compliant with applicable TMC Recommended Practices, SAE Standards, and CE Standards
  • Allison DOC® Premium is RP1210C compliant
•  Operating System and PC Requirements:
  • Microsoft® Windows 7®, Windows 10®
  • 20 GB Hard Drive (40 GB or greater recommended)
  • 3 GB free hard drive space required to install the program (after software installation, the operating system requires sufficient free hard disk space to run the program)
  • Monitor capable of supporting a resolution of 1280x768 or higher recommended
  • USB port depending on installation media
  • Full administrative privileges are required to install, use, and update Allison DOC® Premium
  • Internet broadband connection capability (Internet Explorer® 8 or greater) for activation/reactivation, receiving updates and file downloads
  • Network card

• Performs Allison factory transmission based diagnostics shown above.  Same software used by Allison technicians in Allison dealerships.
• All other manufacturer specific OEM software (such as Cummins Insite) can be  installed on your laptop at any time in the future.
• No Internet Connection required to diagnose Allison medium & heavy truck transmissions.

What's Included:

• LAPTOP: Refurbished Panasonic CF-53 ToughBook Laptop (1Year Warranty on Parts & Labor)
  • Windows Operating System: Windows 10 64 Bit with Certificate Of Authenticity affixed to the bottom of the laptop case
  • CPU: Intel Core I5 M520 2.4GHz
  • Memory:  4GB SDRAM (DDR2)
  • Storage: 320GB SATA Hard Drive mounted in shock proof hard drive caddy
  • Display:  15.4" widescreen 1280 x 800 WXGA LCD, Intel® GM45 (GMA 4500MHD video controller), External video support
  • Audio:  Intel high-definition audio compliant, Integrated stereo speakers, Convenient keyboard volume and mute controls
  • Keyboard:  87-key with dedicated Windows key, Electrostatic touchpad with scrolling support
  • MultiMedia: DVD Super MULTI Drive with Dual Layer Support
  • Expansion Slots: PC card type II x 1.  SD card (SDHC)  ExpressCard/54 x 1
  • Interface: Port replicator Dedicated 100-pin
    • External video D-sub 15-pin,  Headphones/speaker Mini-jack stereo, Microphone/line in Mini-jack stereo, Serial D-sub 9-pin, USB 2.0 (x 4) 4-pin, IEEE 1394a (FireWire) 4-pin, 10/100/1000 Ethernet RJ-45, 56K Modem RJ-11, Intel® Wireless WiFi Link 5100 802.11a/b/g/draft-n
  • Battery: Lithium ion battery pack (11.1V, typical 7800mAh, minimum 7500mAh)
  • AC Adapter: Included
  • Dimension and weight:  11.3"(L) x 14.0"(W) x 2.1"(H), 7.5 lbs.
• 90510 - Allison DOC Premium Factory Heavy Truck Engine Diagnostic Software
  • NOTE: Allison DOC Diagnostics software is registered to the end user before and is not returnable!
• 125032 - DPA-XK Adapter w/ ODB-II Cable - Both Wired and Wireless (Bluetooth) Heavy Truck Connector Kit.
  • Connects to All Class 4, 5, 6, 7,8 Trucks
  • 2 Year limited warranty on the DPA-XL adapter

• FREE BONUS SOFTWARE: DG Light/Medium/Heavy Truck & Car Diagnostics PC Software

  • DG Diagnostics software can read generic & manufacturer codes on any system in the entire truck & industrial equipment- No Expiration.
  • Displays DTC Codes including: Engine, ABS Brake, Transmission, IP, Cab Controllers, Chassis Controllers, and more
  • Will turn off all Generic DTC Codes thought-out the entire vehicle.
  • Provides Controller Identification Table including: VIN, Make, Model, Serial #, Unit #, Controller Software ID for engine, trans, brakes and other controllers
  • Display “Freeze Frame” data, "Total Vehicle" and "Total Trip” data
  • Display common parameters such as temps and pressures from the J1587 and J1939 data buses
  • Create a viewable/printable/savable “Truck Data Report” in HTML format showing all information that has been captured on the screen
  • Configure and launch OEM applications (like ServiceMaxx) directly without having to navigate through the Windows Start Menu
  • Configure and launch PDF files, like the diagnostic PDF files that come from an OEM
  • Software works on:
    • Heavy Trucks: International, Caterpillar, Cummins, Detroit Diesel, Mercedes, Freightliner, ZF, Mack, Meritor, Eaton, Bendix, Dana
    • Medium Duty Truck: UD, Hino, MB Sprinter, GMC, Ford (additional cables required)
    • Car & Light Duty trucks: All Makes & Models sold in the USA (additional cables required)
    • Industrial, Construction, Agricultural & Military Equipment: CAT Off Road,  Komatsu, Volvo, Cummins, etc. (additional cables required)
• MORE FREE BONUS Diagnostic Software-No Expiration:
  • Bendix ACom v6.5 - Bendix Antilock Brake Systems (ABS) Software
  • Haldex PLC ABS Trailer Software
  • Wabash ABS Trailer Software
  • Meritor TranSoft - Meritor FreedomLine & SureShift transmission software
